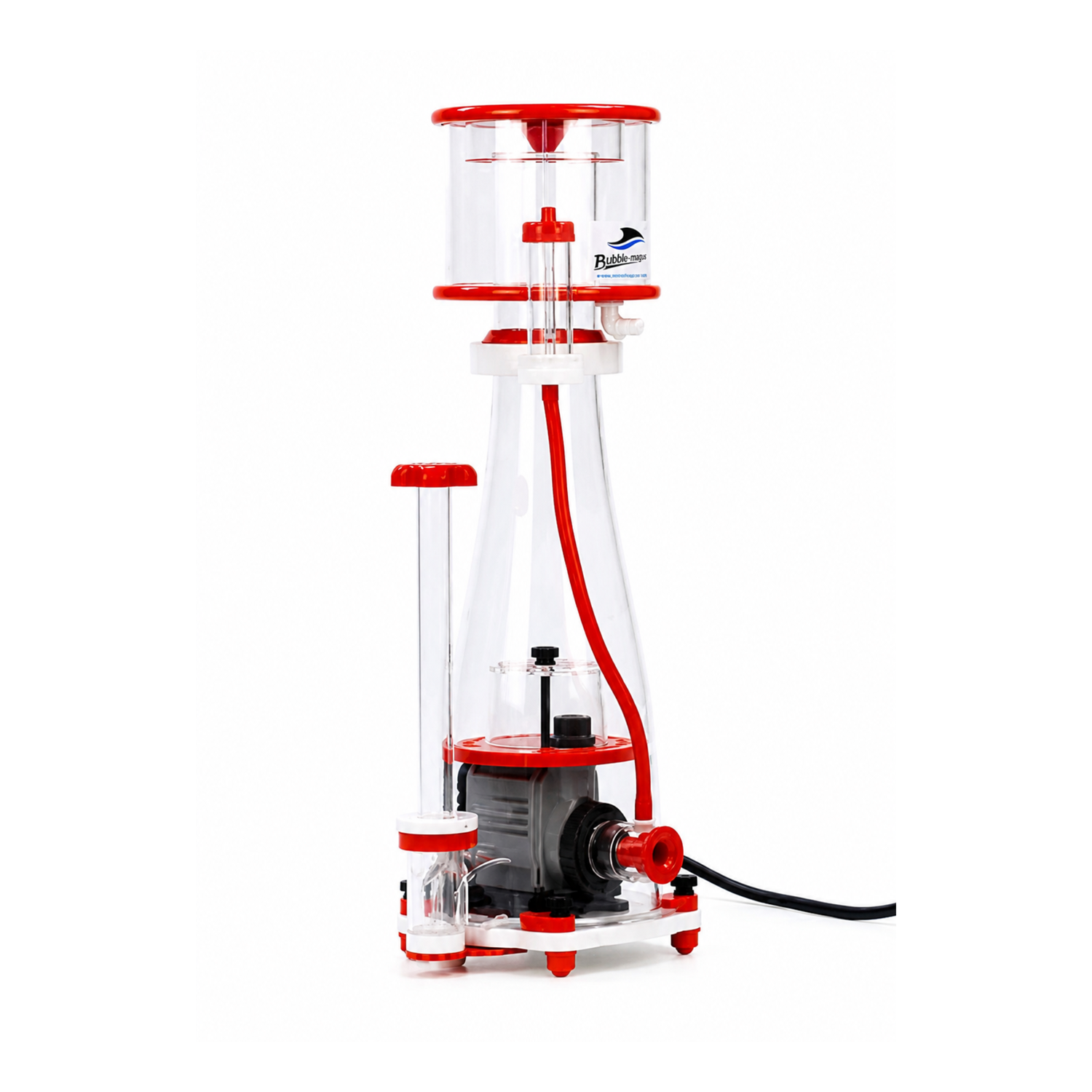

The Bubble-Magus Curve 5 is a compact and efficient in-sump/internal protein skimmer designed for marine and reef aquariums. It uses a ROCK SP1000 needle-wheel pump with a venturi air intake to create fine micro-bubbles that attract and remove dissolved organic waste from aquarium water. Its curved, wine-glass-style body helps concentrate foam toward the collection cup for effective skimming.
Key Features
-
Efficient Protein Skimming: Helps remove dissolved organic waste, proteins and other impurities before they break down into unwanted nutrients.
-
Needle-Wheel Pump: ROCK SP1000 pump produces fine bubbles for effective foam formation.
-
Venturi Air Intake: Provides efficient air-water mixing for improved skimming performance.
-
Curved Body Design: The wine-glass-shaped reaction chamber helps foam rise smoothly toward the collection cup.
-
Bubble Plate: Reduces turbulence inside the reaction chamber and promotes more stable foam production.
-
Quiet Operation: Includes an air-intake silencer to reduce operating noise.
-
Easy Maintenance: Quick-release collection cup and skimmer body make cleaning and servicing easier.
-
Collection Cup Drain: Helps simplify waste removal and can reduce the frequency of manual cup emptying.
-
Space-Saving Design: Compact footprint makes it suitable for sumps with limited space.
-
Durable Acrylic Construction: Designed for long-term use in marine aquarium environments.
Specifications
-
Model: Bubble-Magus Curve 5
-
Type: Internal / In-Sump Protein Skimmer
-
Recommended Aquarium Volume: Approximately 300–500 L
-
Pump: ROCK SP1000
-
Power Consumption: 8W
-
Air Intake: Approximately 300 L/H
-
Dimensions: 185 × 180 × 470 mm / 7.28 × 7.08 × 18.5 inches
-
Recommended Water Level: Approximately 9.5–11 inches (24–28 cm)
Ideal for: Marine aquariums, reef tanks, and saltwater systems requiring efficient organic waste removal in a compact sump setup.
