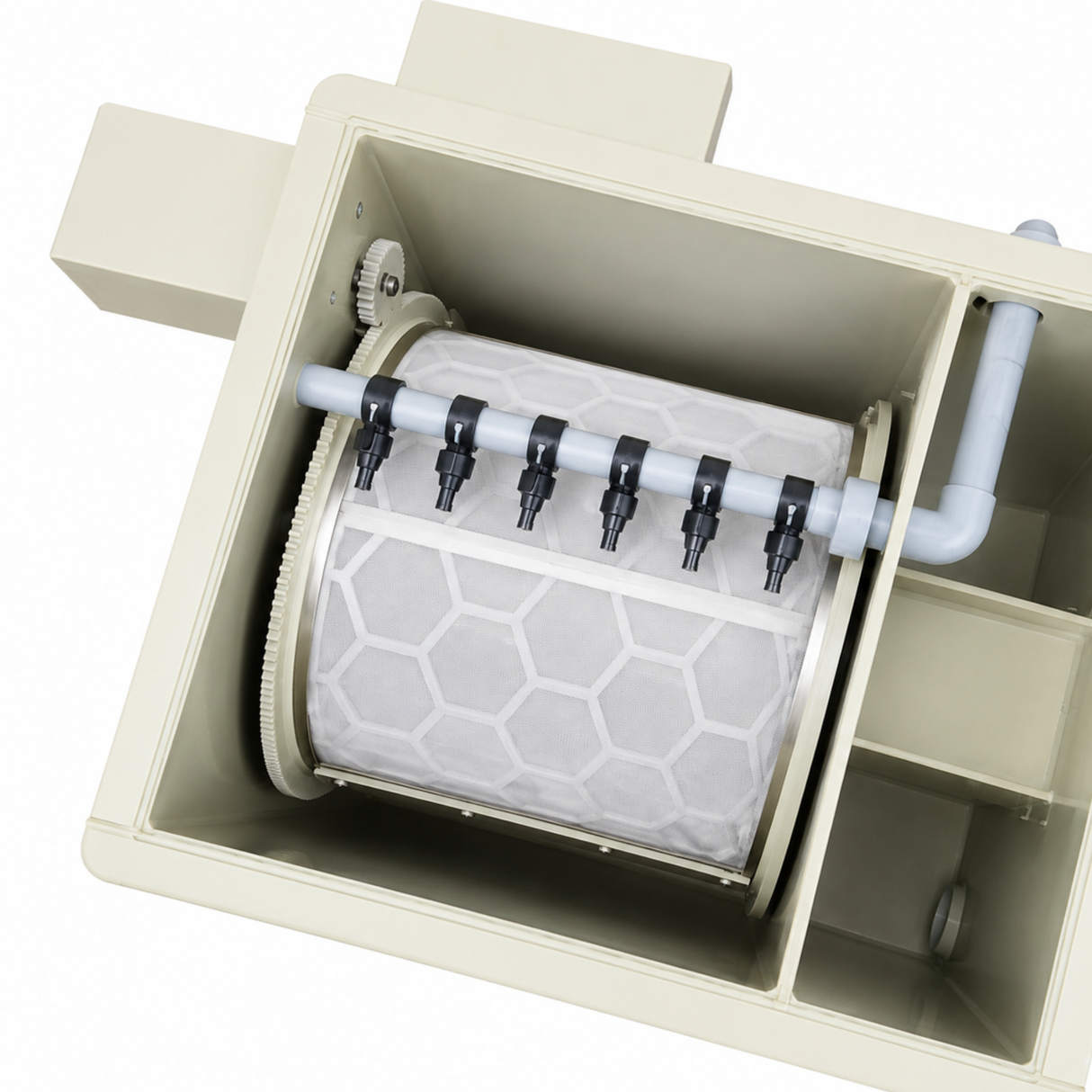

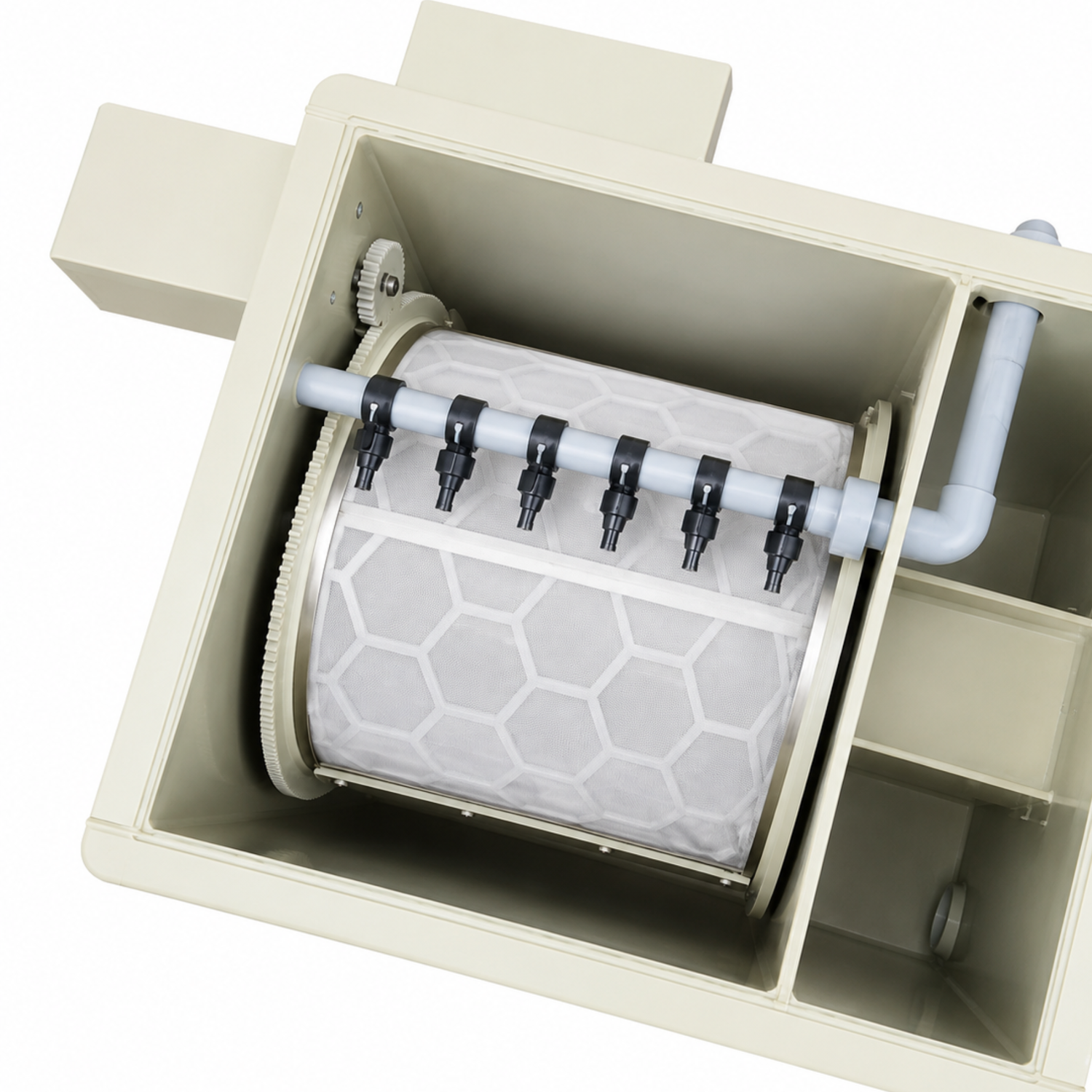

CAP Rotary Drum Filter AG-RD20

Rs. 360,000.00

Pickup available at Shop location

Usually ready in 24 hours

Description

The RD-20 Combi Drum Filter is an all-in-one, multi-stage filtration system designed for koi ponds up to 20,000 liters (5,300 gallons). It automates the maintenance-heavy process of keeping pond water pristine. The system integrates three critical filtration steps—mechanical screen filtering, biological treatment, and UV-C sterilization—into a single, compact, weather-proof housing

Quick Facts

  • Max Flow Rate: 20 m³/h (20,000 L/h or ~5,300 GPH)
  • Ideal Pond Size: Up to 20,000 Liters (Heavy Koi Load)
  • Screen Micron Rating: 60–75 Microns
  • Construction Material: Food-grade Polypropylene (PP) / Stainless Steel
  • Inlets / Outlets: Typically 2 x 110mm / 2 x 110mm
  • Waste Outlet: 1 x 110mm or 50mm
  • Voltage Control Box: 230V AC / 50-60Hz

Features and Benefits


 Automatic Mechanical Backwashing

  • Feature: A 60 to 75-micron stainless steel drum mesh captures solid debris and automatically flushes it away using water pressure sensors.
  • Benefit: Eliminates the manual chore of cleaning dirty filter pads or sponges, keeping water crystal clear with zero daily effort.

Integrated Biological Chamber

  • Feature: A dedicated downstream compartment hosts moving-bed bio-media (such as Hel-X or K1) powered by an air diffuser.
  • Benefit: Cultivates beneficial bacteria that rapidly convert toxic fish waste (ammonia and nitrite) into harmless nitrates.

Built-In UV-C Clarifier

  • Feature: High-output ultraviolet lamps are pre-installed inside the water flow path.
  • Benefit: Eradicates free-floating green algae and controls harmful waterborne pathogens without using chemicals.

Rugged, Weatherproof Build

  • Feature: The body is constructed entirely from thick, UV-stabilized polypropylene (PP) or 304/316 stainless steel.
  • Benefit: Outlasts standard plastic filters under harsh sun and freezing winter temperatures.
